China's Most Powerful Aircraft Engine Ever Takes To The Sky
Jeffrey Lin and P.W. Singer
at 07:18 AM Feb 23 2015
China's Most Powerful Aircraft Engine Ever Takes To The Sky
WS-20 Test Flight
www.top81.cn

China's most powerful aircraft engine, the WS-20, is getting closer to finishing its tests. With a power output of 14 tons, the WS-20 will replace the less powerful and less efficient Russian D-30KP, which has only 10.5 tons of thrust. The WS-20 turbofan has been flying on this Il-76 test aircraft since 2014, and it's likely that aerial testing will wrap up in late 2015.

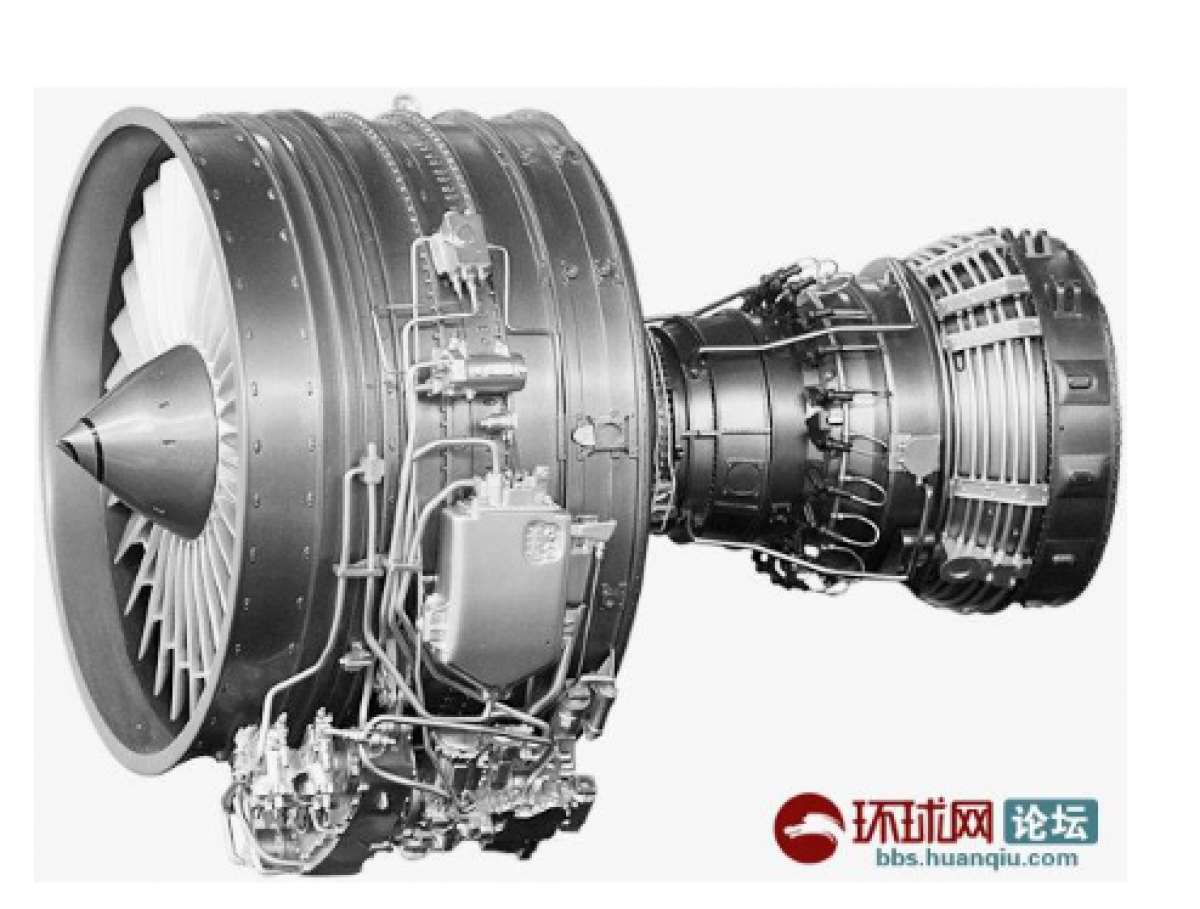

WS-20
bbs.huanqiu.com
The WS-20 turbofan engine can deliver up to 14 tons of thrust, which makes it comparable to the CFM-56 engine with powers Airbus 320 and Boeing 737s.

China has made progress in replacing foreign engines for its fighter programs, but it still relies on the D-30KP turbofan to power subsonic aircraft such as the Y-20 heavy transport and H-6K bomber. The WS-20 is believed to derive its engine core from the WS-10A turbofan engine, which powers the Shenyang J-11B and J-16 strike fighters.

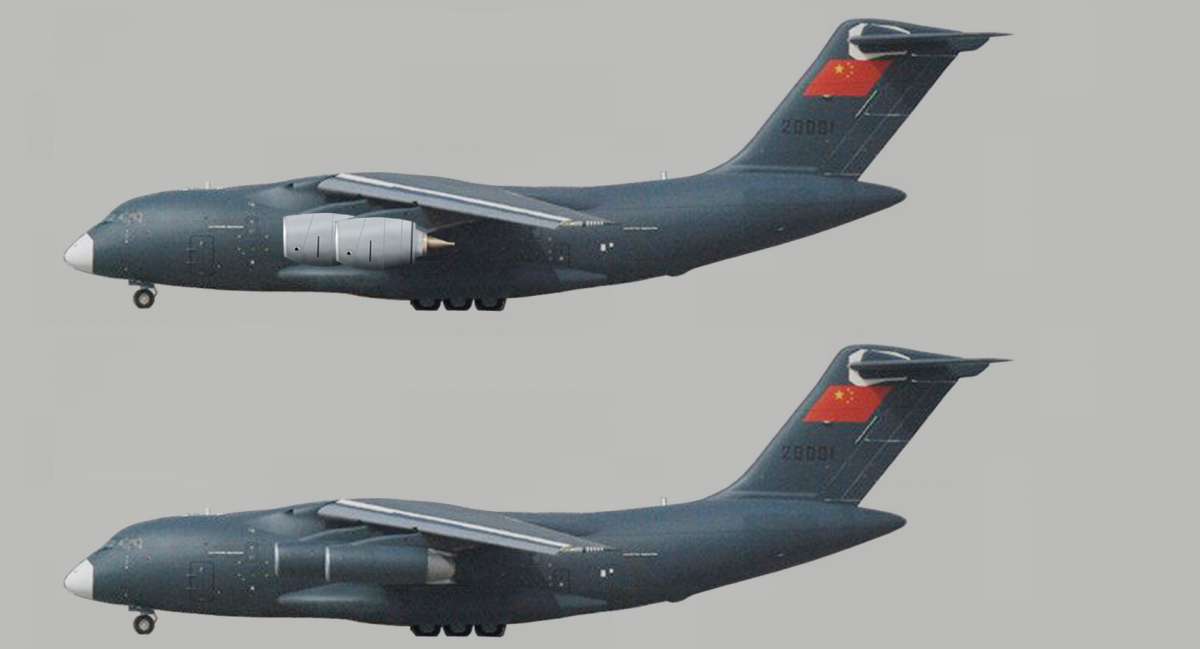

Y-20 Comparision
green-stone13.livejournal.com
This speculative CGI compares the current Y-20 prototype with the smaller D-30 engines at the bottom, while the more powerful and efficient WS-20 engined Y-20 is at the top.

The WS-20 entering into Chinese service would provide performance boosts to the Y-20, increasing its payload to 66 tons from the prototype's 50 tons. That would give China the ability to fly heavy battle tanks and missile launchers across the Asian continent, as well as a larger Y-20-based aerial tanker. The WS-20 could also be a domestic powerplant for military derivatives of the C919 jetliner, which would be used for airborne warning and control, and anti-submarine missions.
